Fundamentals of Linear Control:
A Concise Approach

Maurício C. de Oliveira

Chapter 1: Introduction

linearcontrol.info/fundamentals

1.1 Models and Experiments

Block diagram

  • Input: \(u\)
  • Output: \(y\)
  • System: \(G\)

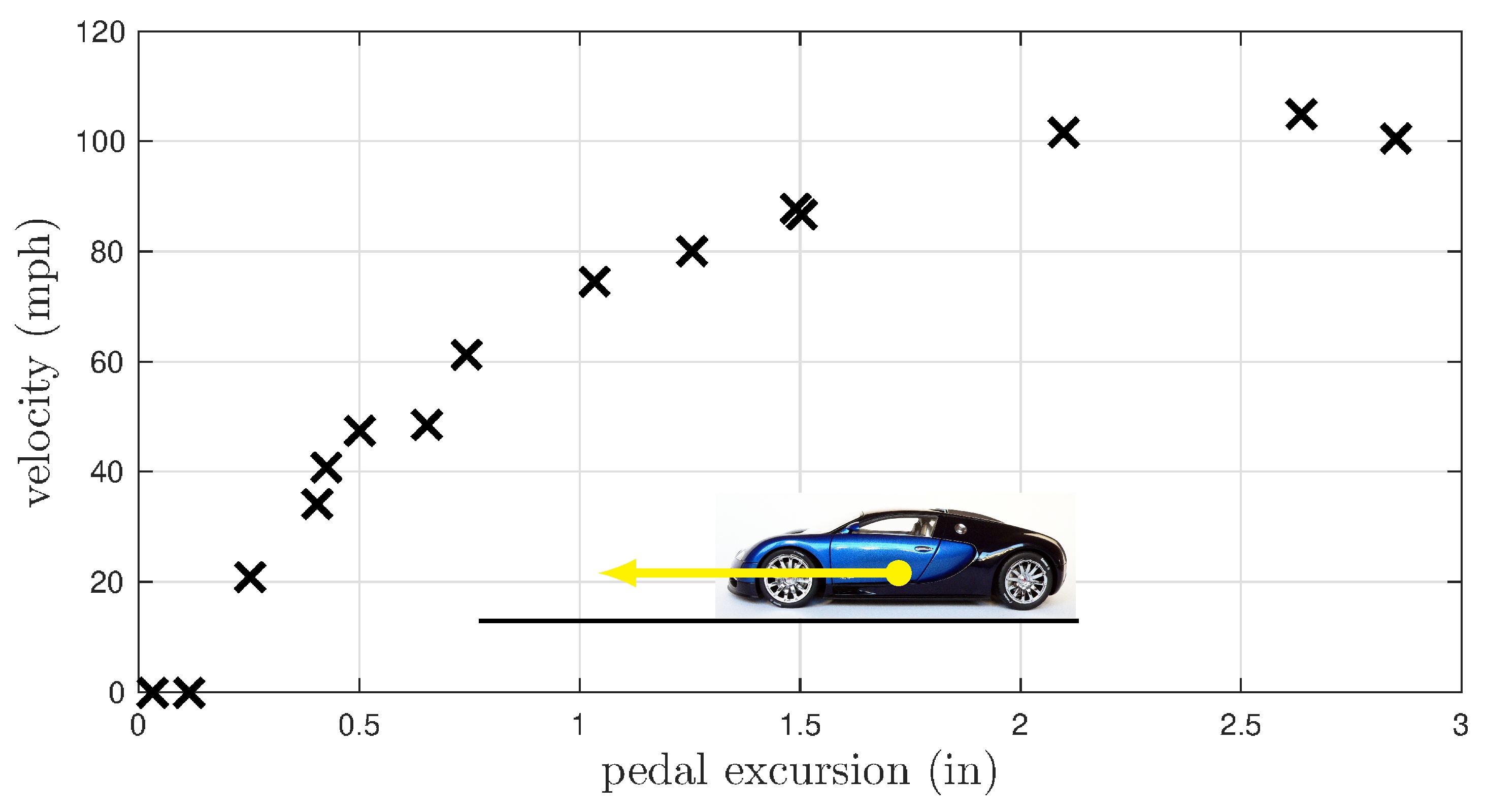

A simple static model of a car

  • Input: pedal excursion, in inches
  • Output: terminal velocity, in mph
  • System: a car and the experimental conditions

A simple static model of a car

Mathematical models

Curve fitting: \(y = \alpha \tan^{-1}(\beta u)\) (nonlinear)

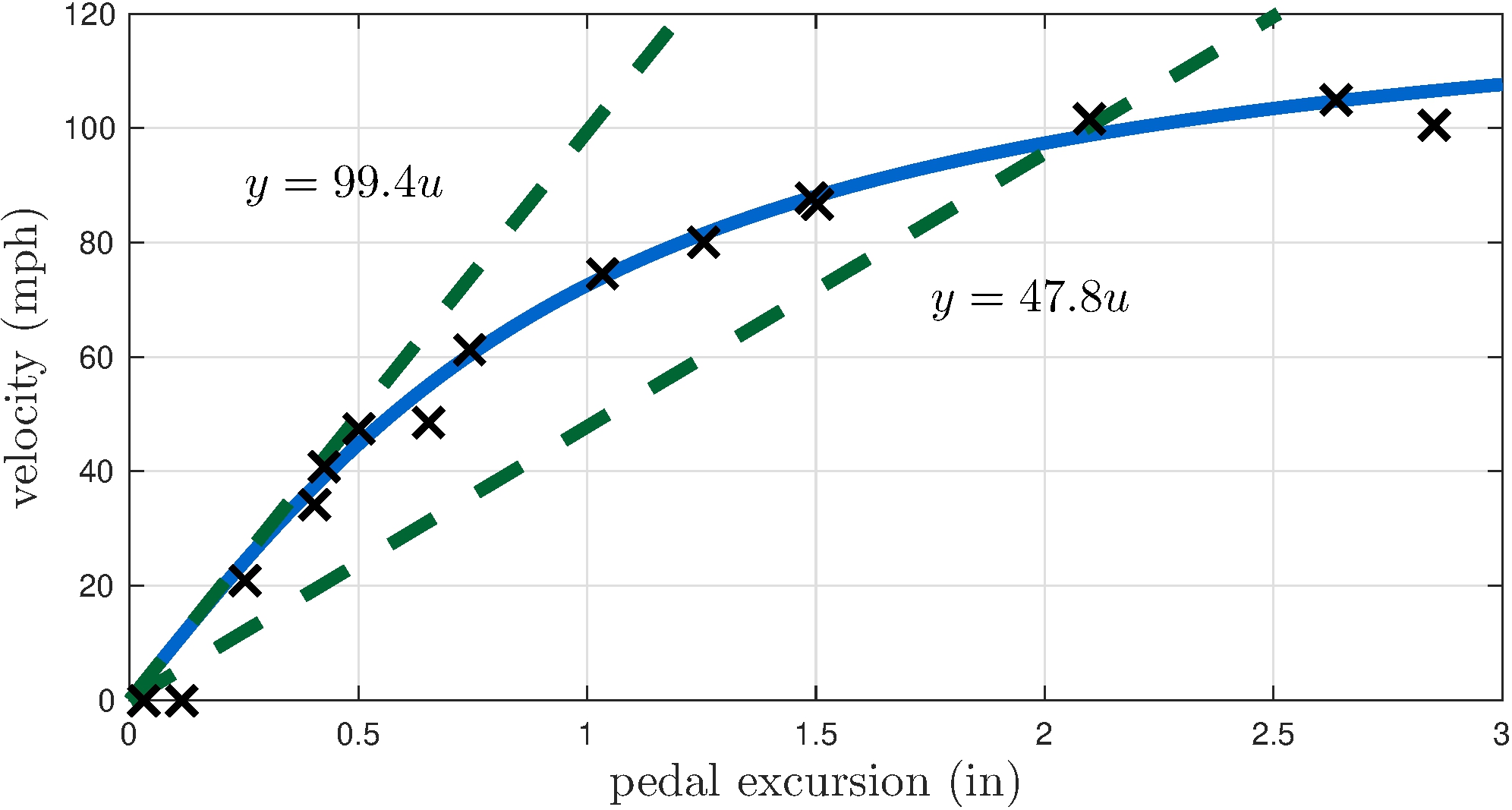

A simple static model of a car

Mathematical models

Curve fitting: \(y = \gamma u\) (linear)

1.2 Cautionary Note

A model

  • should not be confused with reality
  • does not need to be correct
  • is not to be believed

Models can be

  • static: depends on the current value of the input
  • dynamic: depends on the current and past values of the input

In this book

  • signals: continuous functions of time
  • dynamic models: ordinary differential equations

1.3 A Control Problem

Tracking

Given a target terminal velocity, \(\bar{y}\), design a system, the controller, that is capable to command the accelerator pedal of a car, the input, \(u\), to produce a terminal velocity, the output, \(y\), equal to the target velocity?

1.4 Solution without Feedback

System model

\[\begin{align*} y &= G(u) \end{align*}\]

Open-loop controller

\[\begin{align*} u &= K(\bar{y}) \end{align*}\]

Solution

\[\begin{align*} K = G^{-1} \end{align*}\]

Controller is a function of the model

Uncertainty in the model increases uncertainty in the solution

1.5 Solution with Feedback

System model

\[\begin{align*} y &= G(u) \end{align*}\]

Feedback controller

\[\begin{align*} u &= K(\bar{y}, y) \end{align*}\]

Most common feedback controller

\[\begin{align*} u &= K(e), & e &= \bar{y} - y \end{align*}\]

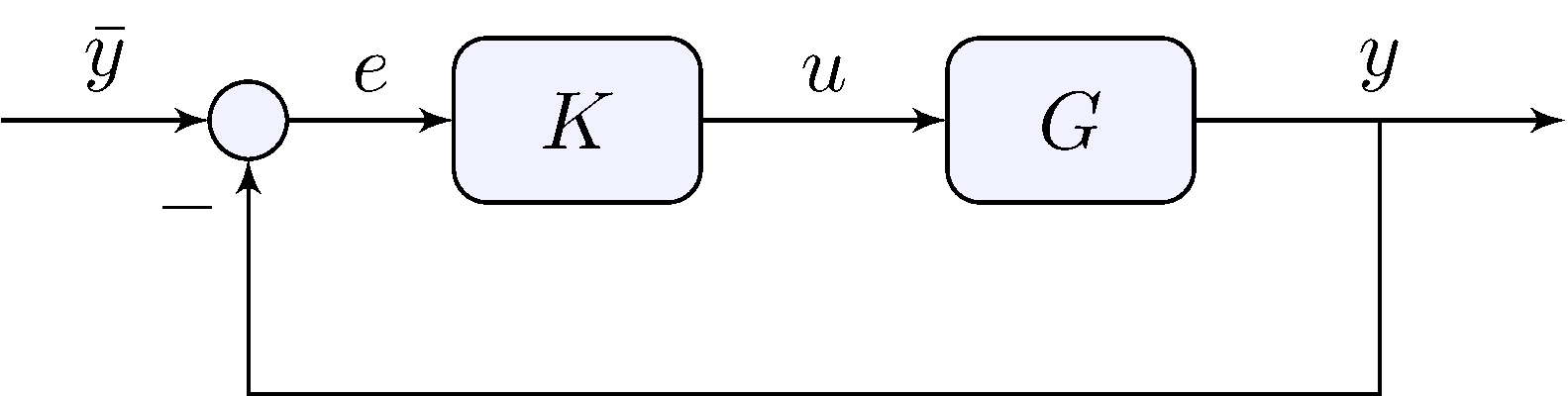

Solution with Feedback

Feedback analysis in the linear case

\[\begin{align*} y &= G \, u, & u &= K \, e, & e &= \bar{y} - y \end{align*}\] Eliminate \(e\) and \(u\): \[\begin{align*} y &= G K e = G K (\bar{y} - y) & &\implies & (1 + G K) y &= G K \bar{y} \end{align*}\] If \(G K \neq 1\) \[\begin{align*} y &= H \bar{y}, & H &= \frac{G K}{1 + G K} \end{align*}\]

Solution with Feedback

Feedback analysis

\[\begin{align*} y &= H \bar{y}, & H &= \frac{G K}{1 + G K} \end{align*}\]

\(K\) large means \(H \approx 1\)

Choice of \(K\) does not depend directly on value of \(G\)

Control signal

\[\begin{align*} u &= K e = K (\bar{y} - y) = K (1 - H) \, \bar{y} = \frac{K}{1 + G K} \, \bar{y} = \frac{1}{K^{-1} + G} \, \bar{y} \end{align*}\]

\(K\) large means \(u \approx G^{-1} \bar{y}\)

Feedback loop learns \(G\)!

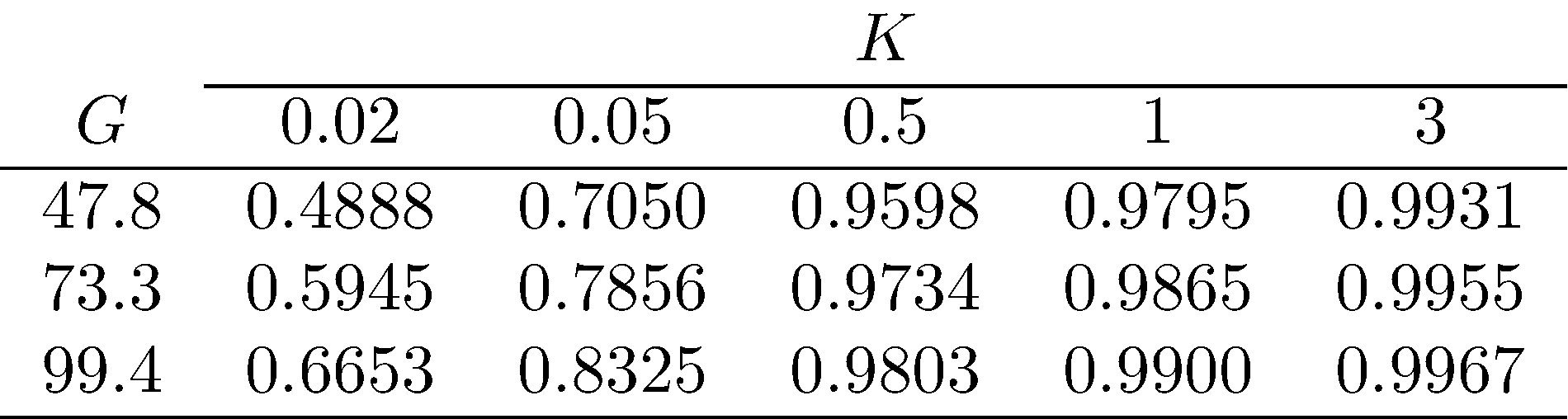

Effect of \(G\), \(K\) on \(H\)

\(K = 0.5\) is already “large”

Value of \(H\) remain close to \(1\) even if \(G\) varies widely

Similar conclusions in the presence of “mild” nonlinearities

1.6 Sensitivity

Transfer-function from reference to output

\[\begin{align*} y &= H(G) \, \bar{y} \end{align*}\]

open-loop: \(H(G) = G K\)

closed-loop: \(H(G) = \frac{G K}{1 + G K}\)

Sensitivity

\[\begin{align*} \frac{H(\bar{G}) - H(G)}{H(\bar{G})} &\approx S(\bar{G}) \frac{\bar{G} - G}{\bar{G}}, & S(G) &= \frac{G}{H(G)} H'(G) \end{align*}\]

open-loop: \(S(G) = 1\)

closed-loop: \(S(G) = \frac{1}{1 + G K}\)

Large \(K\) reduces closed-loop sensitivity

Closed-loop transfer-functions

From reference to output

\[\begin{align*} y &= H \, \bar{y}, & H &= \frac{G K}{1 + G K} \end{align*}\]

From reference to tracking error

\[\begin{align*} e &= \bar{y} - y = (1 - H) \, \bar{y} = S \, \bar{y}, & S &= \frac{1}{1 + G K} \end{align*}\]

Complementarity: \(S + H = 1\)

Large \(K\) improves tracking \(S \rightarrow 0\), \(H \rightarrow 1\)

1.7 Disturbances

Disturbances

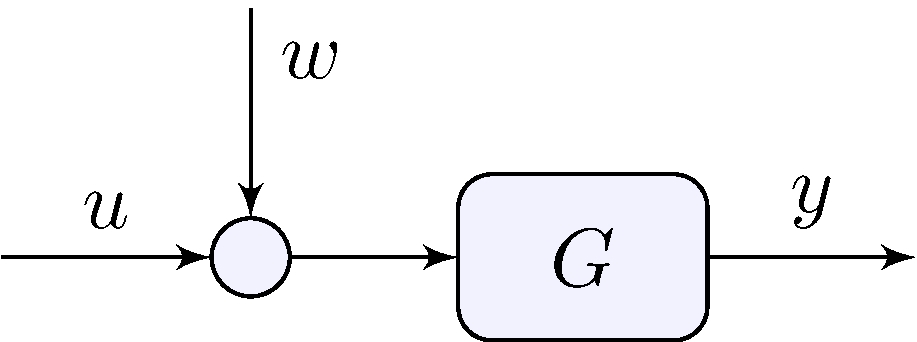

Input disturbance

\[\begin{align*} y &= G (u + w) \end{align*}\]

Disturbances

Open-loop

\[\begin{align*} e &= \bar{y} - y = \bar{y} - G (K \bar{y} + w) = (1 - G K) \bar{y} - G w \end{align*}\] If \(K = G^{-1}\) \[\begin{align*} e &= - G w \end{align*}\]

Open-loop system cannot reject disturbance

Disturbances

Closed-loop

\[\begin{align*} e &= \frac{1}{1 + G K} \, \bar{y} - \frac{G}{1 + G K} \, w \end{align*}\]

\(K\) large makes both terms small

Feedback simultaneously tracks reference and rejects disturbances
